Model：BDS-612+SAD STAND
Name：6"x 48" BELT & 12" DISC SANDER

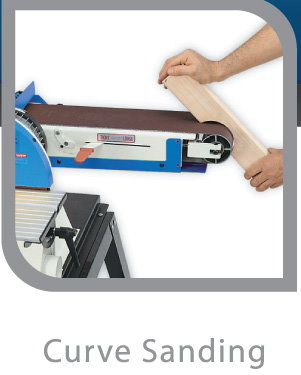

Belt sander operates horizontally and vertically and can be locked at any angle in between. Belt tracking adjustments are easily made with exclusive thumbscrews.
Sturdy cast iron base with a built in handle for easy carry. Steel Frame. Aluminum table and miter gauge. Quick-release sanding belt handle for easy replacement belt. sanding belt micro adjustment for belt alignment adjustment.
| Specification | Content |
|---|---|
| MOTOR | 1.5HP(1.1KW) |
| BELT SIZE | 6"x48"(152 x1219mm) |
| DISC SIZE | 12"(304.8mm) |
| BELT SPEED | 2470 FPM |
| BELT TILTING | 0~90 degree |
| BELT AND DISC TABLE TILTING | UP 0~10 ;DOWN 0~48 degree |
| BELT TABLE SIZE | 12"x6" |
| DISC TABLE SIZE | 15-3/4"x8-7/8" |

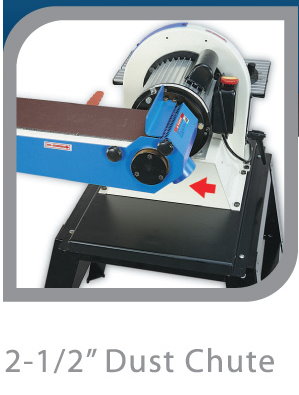

| DUST CHUTE | 2~1/2" |
| OVERALL DIMENSION(LxWxH) | 780x420x740mm |
| PACKING SIZE(LxWxH) | 735x580x550mm |
| NET/GROSSWEIGHT/CUFT | 58kgs/ 61kgs/ 8.3"(with stand) |
