Model:CT-502H

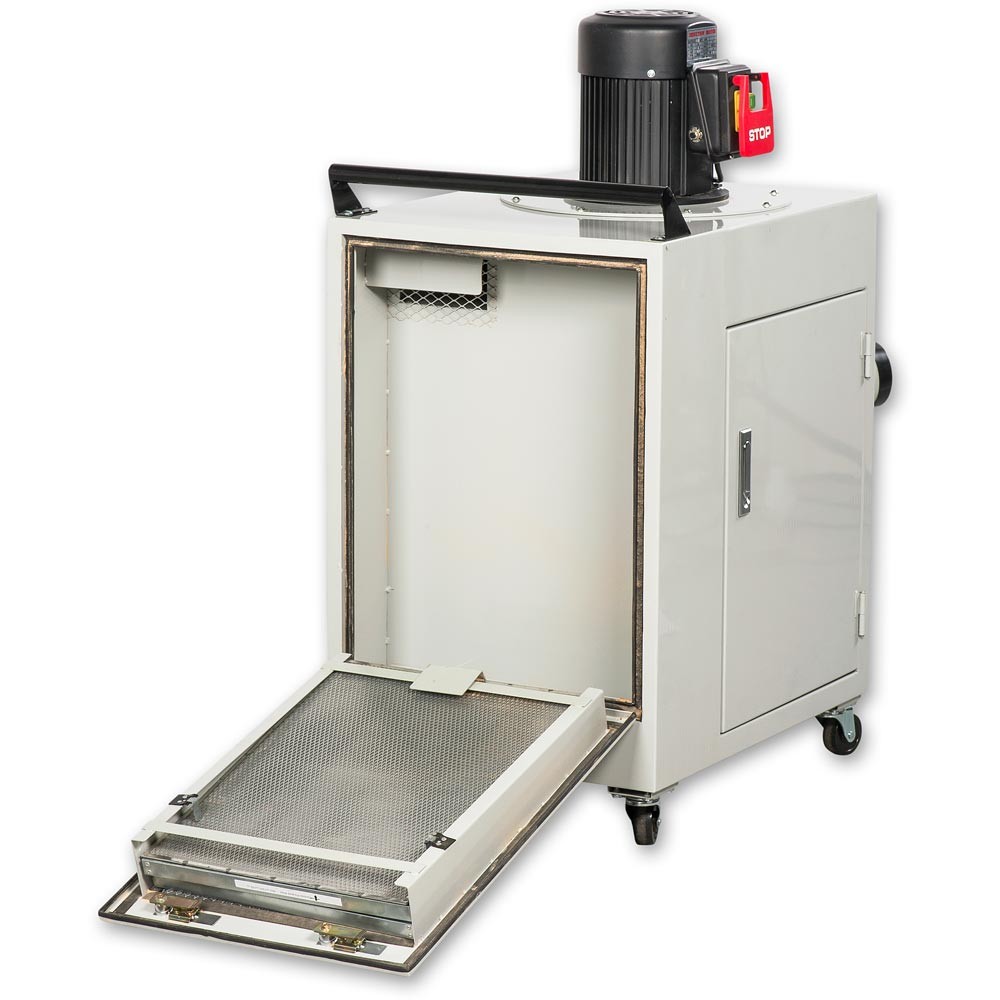

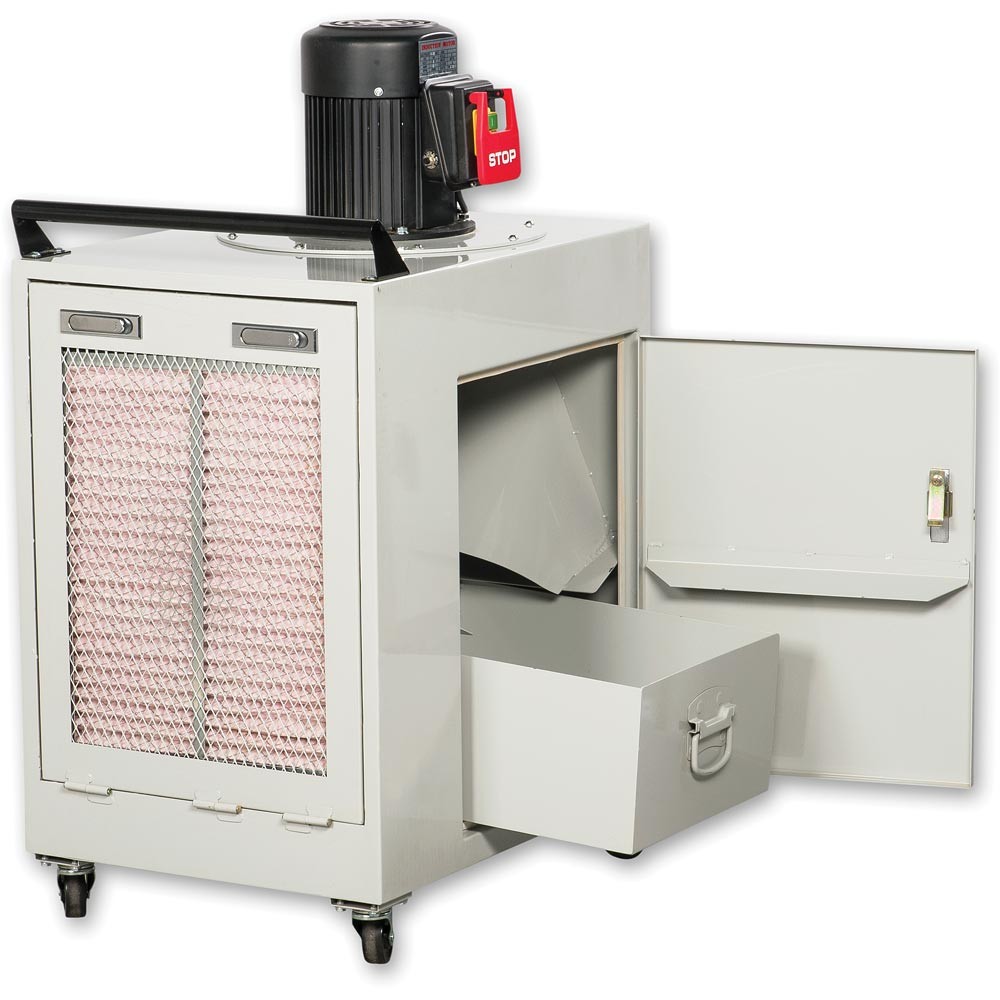

Name:1.5HP PURPOSE-BUILT EXTRACTOR FOR METAL DUSTS
It has a unique air flow system that separates out the dust from the airflow.High static pressure output for quiet and effective dust collection. No-sparking housing with easy-to-clean collection drawers inside the cabinet. Large paddle-style stop switch with safety lock-out pin to prevent unauthorized use. superior 3-stage 5/1 micro filtration system includes: pleated, carbon and stainless steel filters. Too-free filter changes.
Specification | Content |
---|---|
Inlet diameer | 6"*4"*2 |
airflow capacity | 755 CFM |
Blower wheel diameter | 12-3/4" |
Sound ratio | 85dB |
static pressure | 8-5/8"InH2o |
Overall dimensions | 500*970*1110mm |
Motor | 1.5HP, 240V. 6.5A,3450RPM |
Weight | 83kgs |
