Model：ES-689M
Name：OSCILLATING 6"x 89" EDGE BELT SNADER

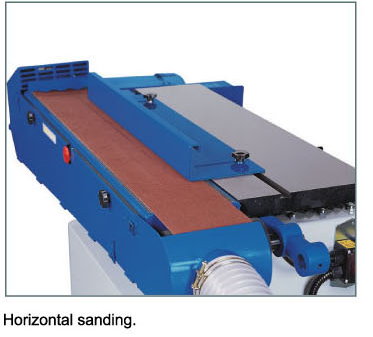

The sander can sand work pieces in either the horizontal or vertical position or any angle in between 90 to 180 degree
Belt plate is made from precision ground steel.
Main sanding paper runs in precision ball bearings and is oscillated by heavy-duty worm and gear mechanism. The worm and gear mechanism run in oil.

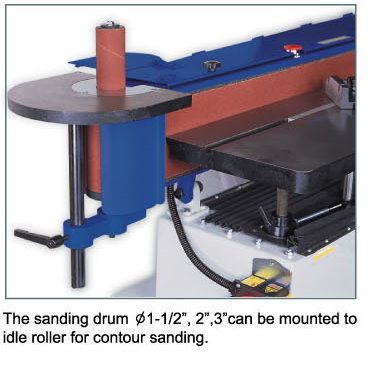

3 spindles from 1-1/2" to 3" in diameter all have threaded end for quick changes.
The front cast iron table can be moved up and down, beside also forward and backward to sanding plate.
Special rubber idler roller and aluminum drive roller to ensure positive grip.
| Specification | Content |
|---|---|
| MOTOR | 2HP,1720 RPM |
| ABRASIVE BELT SIZE | 6"x89" (152x2260mm) |
| BELT SPEED | 3150 FPM(960 MPM) |
| FRONT TABLE SIZE | 26-3/4"x12" |
| AUXILIARY TABLE SIZE | 11-3/8"x8-7/8" |
| PLATEN TILTING | 0~90 degree |
| OSCILLATION DISTANCE | 10mm |
| DUST CHUTE | 4"x2 |
| SANDING DRUM SIZE | 1-1/2",2",3"diameter x 4-1/2"(L) |
| OVERALL DIMENSION(LxWxH) | 51-1/8"x27-1/2"x47-3/4" |
| PACKING SIZE(LxWxH) | 1250x730x1070mm |
| NET/GROSSWEIGHT/CUFT | 161kgs/ 188kgs/ 34.4" |
| 20FT/40FT CONTAINER | 26sets/ 56sets |
