Model：CT-201CK

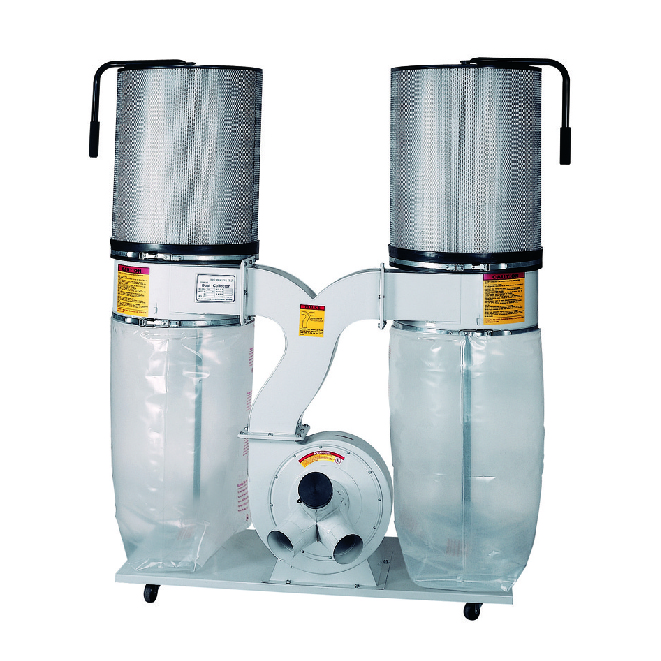

Name：3 HP CANISTER DUST COLLECTOR
With the canister filter, the operator just need simple to turn the handle 120 degree for cleaning.
*The handle can rotate a cleaning flapper inside and shake the dust from the filter letting, and the fine dust will fall down directly into the collection bag.
*The filter material is cartridge filter is made of spun-bond polyester , capable of filtering dust particles down to 1 micron.
*The pleated filter contain more than 5 times the filtering surface area comparing with standard filter bags.
| Specification | Content |
|---|---|
| CT-201CK │ CT-213CK | |
| MOTOR | 3HP/ 60HZ ❙ 2.23KW/ 50HZ│3HP/ 60HZ ❙ 2.25KW/ 50HZ |
| AIR SUCTION CAPACITY W / CANISTER | 2300 CFM ❙ 3000m/3h │2800 CFM ❙ 3500m/3h |
| STATIC PRESSUR | 12InH2O ❙ 304mm/Ag│ 12InH2O ❙ 304mm/Ag |
| INLET DIAMETER | 6"x4"x3 ❙ 152x102mmx3│ 8"x4"x3 ❙ 203x102mm |
| CANISTER FILTER DIAMETER | 19-5/8" ❙ 500mm │ 19-5/8" ❙ 500mm |
| CANISTER FILTER HEIGHT | 23-5/8" ❙ 600mm │ 83-5/8" ❙ 377liter |
| SOUND RATING(NOISE) | 75~85 db |
| OVERALL DIMENSION | 1550x550x1900mm |
| PACKING SIZE-Machinery | 1320x580x580mm |
| PACKING SIZE-Canister | 560x560x720mm(2PCS) |
| NET/GROSS WEIGHT/CUFT-Machinery | 68kgs/ 75kgs/ 15.5" |
| NET/GROSS WEIGHT/CUFT-Canister | 9kgs/ 13kgs/ 7.8"(2PCS) |
| 20FT CONTAINER(SETS) |
